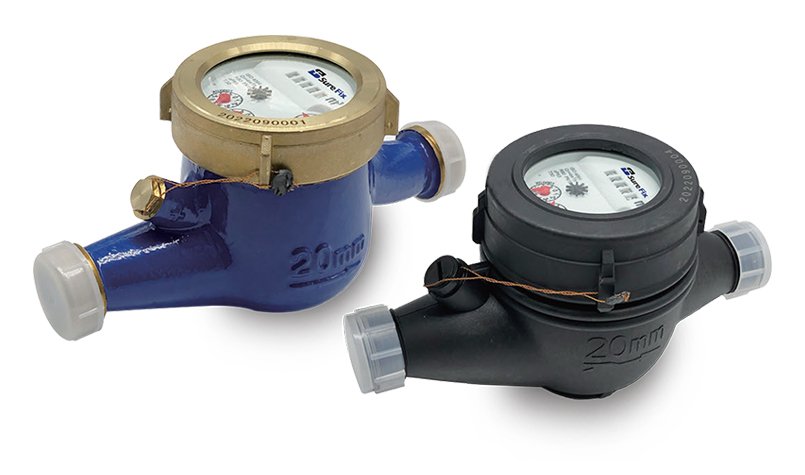

Surefix Multi-Jet Water Meter
The Surefix Multi-Jet Water Meter is a reliable and accurate mechanical water meter engineered for residential, commercial, and light industrial water metering applications. Designed with advanced multi-jet measuring technology, it provides stable performance, low pressure loss, and long-term accuracy for both cold and hot water systems.
Manufactured to comply with ISO 4064 international standards, the meter incorporates a magnetic drive transmission system that minimizes internal friction while improving measurement accuracy and reliability. The sealed dry register protects the counting mechanism from moisture and condensation, ensuring clear readability throughout the product’s service life.
The integrated magnetic shield provides additional protection against external magnetic interference, helping maintain consistent measurement accuracy. An external regulating device allows calibration adjustments when required, while the optional reed switch pulse output enables integration with Automatic Meter Reading (AMR) and Building Management Systems (BMS).
Available in sizes from DN15 to DN50, the Surefix Multi-Jet Water Meter supports both cold water (0.1°C–50°C) and hot water (up to 90°C) applications. BSP and NPT threaded connections are available, and each meter is supplied with coupling nuts, couplings, and sealing washers for quick installation.
Designed for dependable performance and low maintenance, the Surefix Multi-Jet Water Meter is the ideal choice for residential developments, apartments, villas, commercial buildings, and sub-metering applications.
Key Features
Multi-Jet Measuring Technology
Ensures stable and accurate flow measurement with excellent long-term performance.
Magnetic Drive Transmission
Provides low transmission resistance for improved accuracy and reduced wear.
Magnetic Shield Protection
Protects the meter against external magnetic interference.
Sealed Dry Register
Maintains clear readings by preventing moisture and fogging inside the register.
External Calibration Device
Allows convenient calibration adjustments when required.
Optional Pulse Output
Supports AMR, remote monitoring, and Building Management Systems.
Cold & Hot Water Compatible
Suitable for both potable cold water and hot water systems.
Complete Installation Kit
Supplied with couplings, coupling nuts, and sealing washers.
Applications
- Residential Buildings
- Villas
- Apartment Complexes
- Commercial Buildings
- Hotels
- Hospitals
- Schools
- Water Sub-Metering
- Utility Water Distribution
- Building Management Systems (BMS)
Technical Specifications
| Specification | Value |
|---|---|
| Meter Type | Multi-Jet Mechanical Water Meter |
| Accuracy | Class 2 |
| Standard | ISO 4064 |
| Sizes | DN15–DN50 |
| Body Material | Brass |
| Register | Dry Type |
| Drive | Magnetic Drive |
| Protection | Magnetic Shield |
| Pressure Rating | PN16 |
| Pressure Loss | ≤0.63 Bar |
| Temperature | 0.1°C–50°C (Cold), up to 90°C (Hot) |
| Thread Type | BSP / NPT |
| Pulse Output | Optional Reed Switch |
| Installation Accessories | Included |
Why Choose Surefix?
Surefix provides high-quality water metering solutions engineered for accuracy, durability, and long-term reliability. The Surefix Multi-Jet Water Meter combines robust brass construction, magnetic drive technology, and international-standard performance to deliver dependable water measurement for residential and commercial applications.
Datasheet – https://surefix.biz/wp-content/uploads/2026/07/SUREFIX-MULTI-JET-WATER-METER-Data-Sheet.pdf
Check Other Water Meters – https://surefix.biz/product-category/water-meter/
